Multiple conduits help channel the water away quickly to prevent flooding.

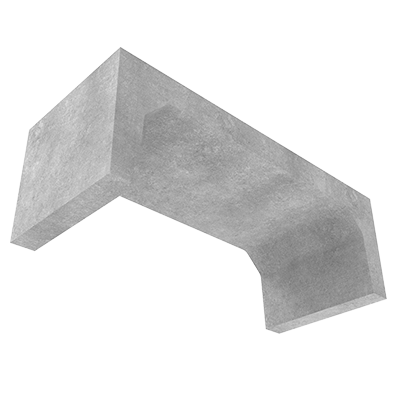

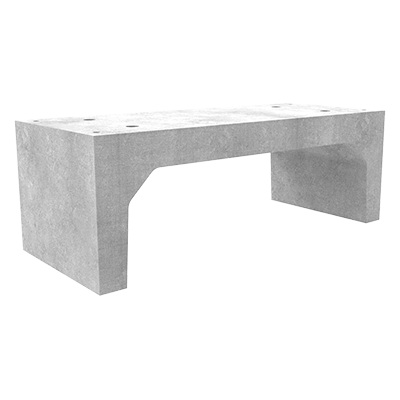

Box Culverts TMR 2400×600-2A 1200mm Nominal Length
Product Code: 50207188
Box culverts are TMR approved products and they have several application options. They were designed for high flow drainage solutions, but simultaneously they can be used as road or train tracks underpasses, or for walkways. Box culverts have a lifespan of 100 years.
Features & benefits
High flow drainage
Different configurations are possible
Box culverts be used as bridge support, irrigation or walkway underpass.
“U” shape
Single culvert can be inverted as a U shape with a base slab on top to create an enclosure.
Full specifications
Material
40MPa fibre reinforced concrete is a high strength concrete used to make box culverts. The rating of 40MPa or greater means that box culverts will remain durable and robust throughout their lifetime.
Australian Standards
AS 3996: 2019
How it works
Base slabs are dropped into place followed by box culverts. If box culverts run parallel, then a link slab is placed in between to enclose the middle conduit. Minimal amount of backfill is required to complete the project.
