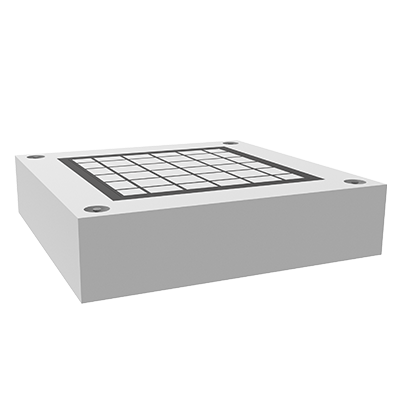

Encasement Infill 850x850x250 with 450×450 Class D

Product Code: 50206826

Infrastructure Products Australia' precast encasements are manufactured using a 40MPa steel reinforced concrete and come in a variety of sizes to suit Infrastructure Products Australia’ broad range of access covers, including GMS and cast iron covers.

  • Materials
    Ductile Cast Iron, Precast Concrete
  • Size
    850mm (L) x 850mm (W) x 250mm (D)
  • Load Rating
    D

Features & benefits

Variability in size

Our precast encasement range comes in a variety of sizes to accommodate for our broad range of access cover options to ensure you have the right combination for your project.

Heavy duty applications

Manufactured using steel reinforced 40MPa concrete, Infrastructure Products Australia’ precast encasements are an excellent solution for heavy duty applications.

Bespoke capabilities

Custom sizing of our precast encasements is available to suit the unique requirements of your project, so that you can be confident you’re getting exactly what you need.

Full specifications

Material

High strength concrete has a compressive strength of 40MPa or greater. Infrastructure Products Australia manufactures their precast encasements using steel reinforced concrete to ensure a minimum of 40MPa. This ensures that our precast encasements remain durable and robust throughout their lifetime.

Load Rating

Infrastructure Products Australia’ precast encasements are manufactured a Class D load rating (a serviceability design load of 900kN) under the Australian Standard AS/NZ 3996.
