Can be transported by a ute and assembled by a single person without the need of heavy lifting machinery.

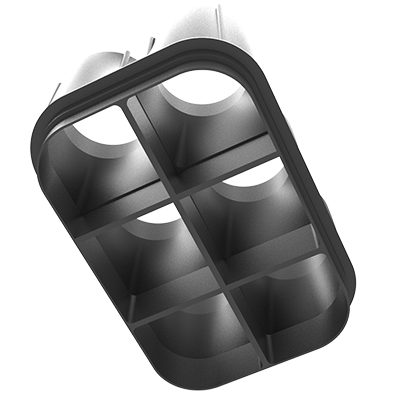

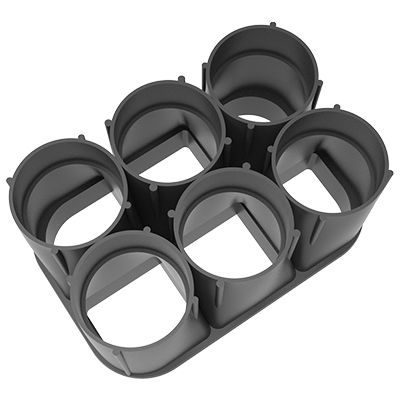

MULTIduct™ 6 Way Single Duct Adaptor
Features & benefits
Lightweight HDPE
Quick assembly
Each unit can be installed in under one minute
Application
Six slots for six applications
Full specifications
Material
Manufactured from high density polyethylene (HDPE), MULTIduct™ offers a lightweight, high strength to weight unit. With parts weighing below 20kg MULTIduct™ offers significant health and safety advantages permitting a single person lift and install.
Load Rating
Infrastructure Products Australia' MULTIduct™ manufactured to a Class B load rating (ultimate limit state design load of 10kN) under the Australian Standard AS/NZ 3996
How it works
Interlocking male and female clips make installation process seem like a puzzle. Installation is as easy as lining the clips together and clicking the duct into place. Interior of the ducts is seamless and eliminates disengagement during cable pulling.
