STAKKAbox™ Fortress HS6

Product Code: 50201250

STAKKAbox™ Fortress HS6 is a mid-size pit from the high strength range. It was designed for an ease of transportation, quick assembly and ground level adjustability. The unique features allow the HS6 frame to be adjusted to suit the surrounding environment, as well as simplifying the installation process.

  • Materials
    High Density Polyethylene (HDPE), Precast Concrete
  • Size
    1470mm (L) x 730mm (W) x 688mm (D)
  • Load Rating
    B

Features & benefits

Adjustable frame

The supporting composite cover frame can be adjusted up to 4 degrees to suit the ground level.

Lightweight parts

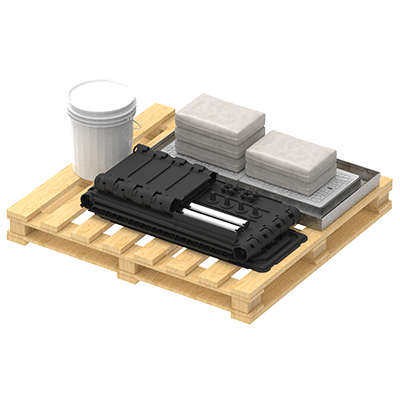

Can be transported by a ute and assembled by a single person without the need of heavy lifting machinery.

Quick assembly

Can be completed start to finish within a couple of hours.

Full specifications

Material

STAKKAbox™ Fortress is manufactured in nitrogen-foamed High-Density Polyethylene (HDPE), of which up to 70% is recycled material. HDPE possesses excellent strength-to-weight properties.

Load Rating

STAKKAbox™ Fortress is suitable for installation in environments rated up to Class C load rating (ultimate limit state design of 150kN) under the Australian Standard AS/NZ 3996.

How it works

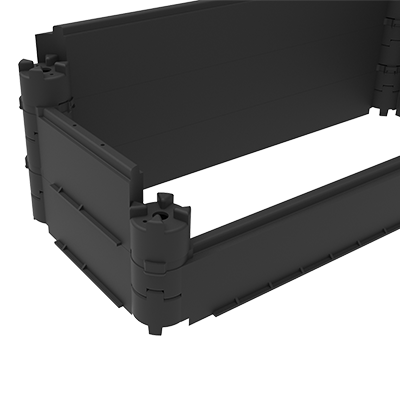

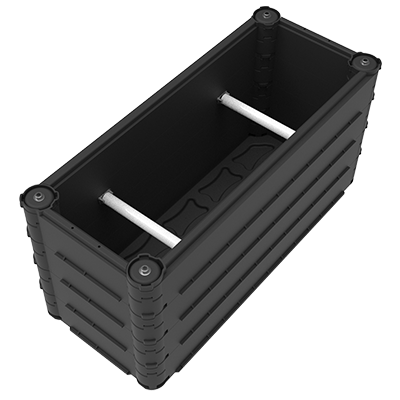

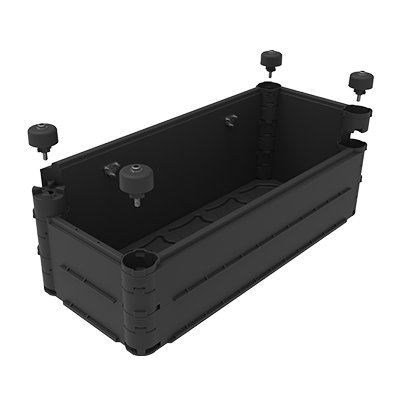

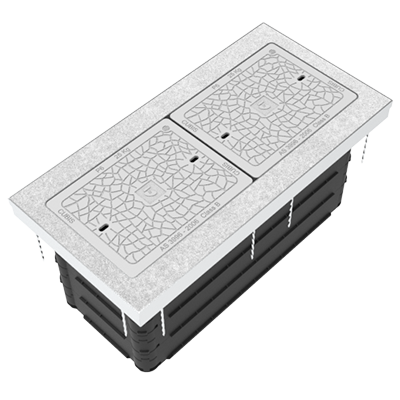

HS6 Fortress comes with a base and is constructed with four interlocking walls which are built four rings high. The supporting composite cover frame can be adjusted up to 4 degrees to suit the ground level. It is then finished off with gaskets and composi
